BestScope BS-2036FB(LED) Fluorescent Binocular Biological

BestScope BS-2036FB(LED) Fluorescent Binocular Biological

د.م.38,750.00

Item	Specification	BS-2036FB	BS-2036FT	BS-2036FB(LED)	BS-2036FT(LED)
Optical System	Finite Optical System
Optical System	Infinite Optical System	●	●	●	●
Viewing Head	Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-75mm	●	○	●	○
Viewing Head	Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80	○	●	○	●
Eyepiece	Wide field eyepiece WF10X/18mm	○	○	○	○
	High eyepoint wide field eyepiece WF10X/20mm	●	●	●	●
	WF16X/13mm	○	○	○	○
	Reticule eyepiece WF10X/18mm (0.1mm)	○	○	○	○
	Reticule eyepiece WF10X/20mm (0.1mm)		○	○	○
Achromatic Objective	4X, 10X, 40X(S), 100X/NA 1.25 (Oil) (S)	○	○	○	○
Achromatic Objective	20X, 60X (S)	○	○	○	○
Plan Achromatic Objective	4X, 10X, 40X/NA 0.65 (S), 100X/NA 1.25 (Oil) (S)	○	○	○	○
Plan Achromatic Objective	20X, 60X (S)	○	○	○	○
Infinite Achromatic Objective	E-Plan 4X, 10X, 40X (S), 100X (Oil) (S)	○	○
	Plan 4X, 10X, 40X (S), 100X (Oil) (S)	●	●	●	●
	Plan 20X, 60X (S), 100X (Water) (S)	○	○	○	○
Infinity Plan Semi-Apochromatic Fluorescent Objectives	4X/NA=0.16, WD=17.15mm	○	○	○	○
	10X/NA=0.30, WD=7.68mm	○	○	○	○
	20X/NA=0.50, WD=1.96mm	○	○	○	○
	40X/NA=0.75, WD=0.78mm	○	○	○	○
	40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover)	○	○	○	○
	(Oil) 100X/NA=1.3, WD=0.15mm	○	○	○	○
Nosepiece	Backward Quadruple Nosepiece	●	●	●	●
Nosepiece	Backward Quintuple Nosepiece	○	○	○	○
Focusing	Coaxial coarse & fine focusing knobs, travel range: 26mm, Scale:2um	●	●	●	●
Stage	Double layers mechanical stage, size: 145mm140mm, cross travel 76mm52mm, scale 0.1mm, two slide holders	●	●	●	●
Stage	Rackless double layers mechanical stage, size: 140mm135mm, cross travel 75mm35mm, scale 0.1mm, two slide holders	○	○	○	○
Condenser	Abbe condenser NA1.25 with iris diaphragm	●	●	●	●
Illumination	3W LED lamp, brightness adjustable	●	●	●	●
	6V/20W Halogen lamp, brightness adjustable	○	○	○	○
	6V/30W Halogen lamp, brightness adjustable	○	○	○	○
Field Diaphragm	Field diaphragm	○	○	○	○
Dark Field Condenser	N.A.0.9 (Dry) Dark field condenser (for 10X-40X objectives)	○	○	○	○
Dark Field Condenser	N.A.1.3 (Oil) Dark field condenser (for 100X objective)	○	○	○	○
Polarizing Set	Analyzer and Polarizer	○	○	○	○
Independent Phase Contrast Unit	Infinite Plan Phase Contrast 10X			○	○
	Infinite Plan Phase Contrast 20X			○	○
	Infinite Plan Phase Contrast 40X	○	○	○	○
	Infinite Plan Phase Contrast 100X	○	○	○	○
	Phase contrast slide	○	○	○	○
	Condenser	○	○	○	○
	Telescope	○	○	○	○
	Green filter	○	○	○	○
Fluorescence Attachment	B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.	●	●	○	○
	UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.	○	○	○	○
	B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.	○	○	●	●
	UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.	○	○	○	○
	B or G fluorescence unit, 5W-LED fluorescence lamp.	○	○	○	○
	Auramine long pass fluorescence unit, with 5W LED fluorescence lamp	○	○	○	○
	B/G fluorescence unit, 5W-LED fluorescence lamp.			○	○
Filter	Blue filter (Φ45)	○	○	○	○
	Green filter (Φ45)	○	○	○	○
	Yellow filter (Φ45)	○	○	○	○
Photo Adapter	Used to Connect Nikon/Canon/Sony/Olympus DSLR camera to the microscope	○	○	○	○
Video Adapter	0.5X C-mount adapter, adjustable focus		●		●
	0.75X C-mount adapter, adjustable focus	○	○	○	○
	1X C-mount adapter, adjustable focus	○	○	○	○
	Trinocular digital eyepiece interface	○	○	○	○
Mirror	Reflect Mirror	○	○	○	○
Cable Winding Device	Used to wind cable on back of the microscope	○	○	○	○
Rechargeable Battery	3pcs AA rechargeable Nickel-metal hydride battery	○	○	○	○
Package	1pc/carton, 42cm28cm45cm, Gross Weight 8kg, Net Weight 6.5kg	○	○	○	○

Note: ●Standard Outfit, ○Optional

Category: Microscopes

Description

Introduction

Details

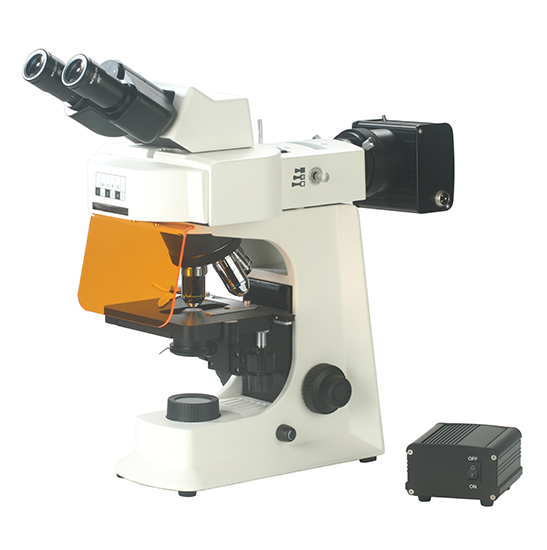

Model:BS-2036FB(LED)

Viewing Head:Binocular

Magnification:40x-1000x

Eyepiece:WF10X/20mm

Objective:4X, 10X, 40X, 100X

Stage:Double Layers Stage

Condenser:NA1.25

Fluorescence Illumination:5W LED Fluorescence Lamp

Introduction

The BS-2036FB(LED) microscope is a mid-level microscope specially designed for college education, medical, and laboratory studies. It adopts a high-quality optical system, a beautiful structure, and ergonomic design. With an innovative optical and structural design idea, excellent optical performance, and an easy-to-operate system, this biological microscope makes your work enjoyable.

Features

1.Excellent optical system

Excellent optical system, outstanding image quality with high resolution and definition.

2.Ergonomic design

Comfortable operating with ergonomic design. Back handle and observing hole convenient for carry and operation.

3.Unique aspheric illumination system

Unique aspheric illumination system, provide bright and comfortable lighting.

4.Color for optional

White color is standard, blue color is optional for lively environment and happy mood.

5.Viewing head

Brand new and humanized butterfly binocular head-tubes can be 360° rotated to raise observing height 44mm than normal tubes to be more convenient for users with different height.
