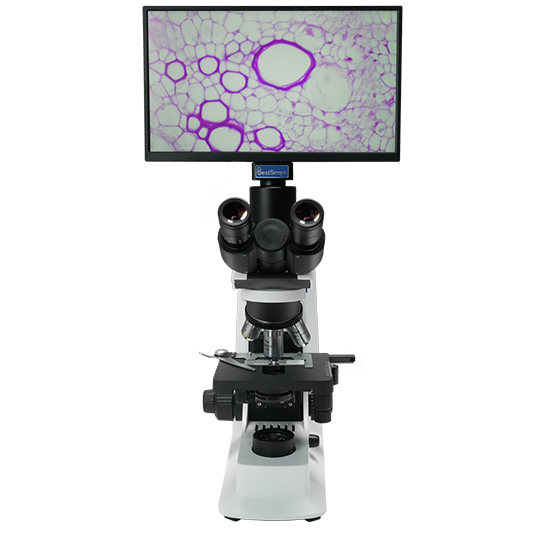

BestScope BLM5-236 LCD Digital Biological Microscope

BestScope BLM5-236 LCD Digital Biological Microscope - Image 2

BestScope BLM5-236 LCD Digital Biological Microscope - Image 3

BestScope BLM5-236 LCD Digital Biological Microscope - Image 4

BestScope BLM5-236 LCD Digital Biological Microscope - Image 5

BestScope BLM5-236 LCD Digital Biological Microscope - Image 6

BestScope BLM5-236 LCD Digital Biological Microscope - Image 7

BestScope BLM5-236 LCD Digital Biological Microscope - Image 8

BestScope BLM5-236 LCD Digital Biological Microscope - Image 9

BestScope BLM5-236 LCD Digital Biological Microscope

د.م.21,750.00

Item	Specification	BLM5-236
Optical System	Infinite Optical System	●
LCD Digital Camera	BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (38402160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 19201080.	●
Viewing Head	Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80	●
Eyepiece	High eyepoint wide field eyepiece WF10X/20mm	●
	WF16X/13mm	○
	Reticule eyepiece WF10X/20mm (0.1mm)	○
Infinite Achromatic Objective	Plan 4X, 10X, 40X (S), 100X (Oil) (S)	●
Infinite Achromatic Objective	Plan 20X, 60X (S), 100X (Water) (S)	○
Infinity Plan Semi-Apochromatic Fluorescent Objectives	4X/NA=0.16, WD=17.15mm	○
	10X/NA=0.30, WD=7.68mm	○
	20X/NA=0.50, WD=1.96mm	○
	40X/NA=0.75, WD=0.78mm	○
	40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover)	○
	(Oil) 100X/NA=1.3, WD=0.15mm	○
Nosepiece	Backward Quadruple Nosepiece	●
Nosepiece	Backward Quintuple Nosepiece	○
Focusing	Coaxial coarse & fine focusing knobs, travel range: 26mm, Scale:2um	●
Stage	Double layers mechanical stage, size: 145mm140mm, cross travel 76mm52mm, scale 0.1mm, two slide holders	●
Stage	Rackless double layers mechanical stage, size: 140mm135mm, cross travel 75mm35mm, scale 0.1mm, two slide holders	○
Condenser	Abbe condenser NA1.25 with iris diaphragm	●
Illumination	3W LED lamp, brightness adjustable	●
	12V/20W Halogen lamp, brightness adjustable	○
	12V/30W Halogen lamp, brightness adjustable	○
Field Diaphragm	Field diaphragm	○
Dark Field Condenser	N.A.0.9 (Dry) Dark field condenser (for 10X-40X objectives)	○
Dark Field Condenser	N.A.1.3 (Oil) Dark field condenser (for 100X objective)	○
Polarizing Set	Analyzer and Polarizer	○
Independent Phase Contrast Unit	Infinite Plan Phase Contrast 10X	○
	Infinite Plan Phase Contrast 20X	○
	Infinite Plan Phase Contrast 40X	○
	Infinite Plan Phase Contrast 100X	○
	Phase contrast slide	○
	Condenser	○
	Telescope	○
	Green filter	○
Fluorescence Attachment	B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.	○
	UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.	○
	B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.	○
	UV/V/B/G Epi fluorescence unit ( six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.	○
	B or G fluorescence unit, 5W-LED fluorescence lamp.	○
	Auramine long pass fluorescence unit, with 5W LED fluorescence lamp	○
	B/G fluorescence unit, 5W-LED fluorescence lamp.	○
Filter	Blue filter (Φ45)	○
	Green filter (Φ45)	○
	Yellow filter (Φ45)	○
Photo Adapter	Used to Connect Nikon/Canon/Sony/Olympus DSLR camera to the microscope	○
Video Adapter	0.5X C-mount adapter, adjustable focus	●
	0.75X C-mount adapter, adjustable focus	○
	1X C-mount adapter, adjustable focus	○
	Trinocular digital eyepiece interface	○
Mirror	Reflect Mirror	○
Cable Winding Device	Used to wind cable on back of the microscope	○
Rechargeable Battery	3pcs AA rechargeable Nickel-metal hydride battery	○

Note: ●Standard Outfit, ○Optional

Order Code

Sensor & Size (mm)

Pixel (μm)

G Sensitivity

Dark Signal

FPS/Resolution

ADC

Binning

Exposure

BLM5-236

Sony IMX678(C)
1/1.8″(7.68×4.32)

2.0×2.0

1364mv with 1/30s
0.15mv with 1/30s

30@3840*2160

1×1

0.04~1000

Order Code	Video Saving (FPS/Resolution)	HDMI2.0 (FPS/Resolution)	USB2.0 (FPS/Resolution)	WiFi (FPS/Resolution)
BLM5-236	30@3840*2160	30@3840*2160	30@3840*2160	30@3840*2160

Category: Microscopes

Description

Introduction

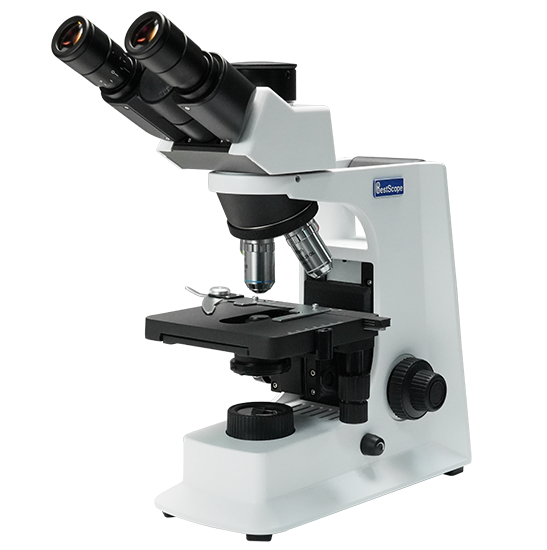

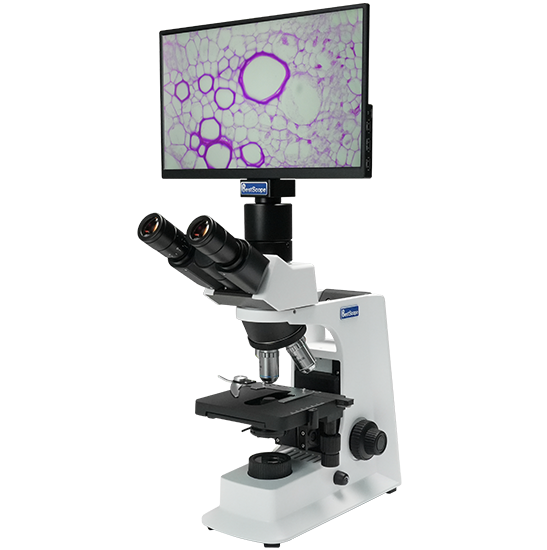

BLM5-236 LCD Digital Biological Microscope is middle level microscopes which is specially designed for college education, medical and laboratory study.

Details

Model：BLM5-236

Eyepiece:WF10X/20mm

Sensor Size:1/2.8”

Objective:4X, 10X, 40X (S), 100X (Oil) (S)

Illumination:3W LED lamp

Viewing Head: Trinocular

Introduction

BLM5-236 LCD Digital Biological Microscope is middle level microscopes which is specially designed for college education, medical and laboratory study. It adopts high quality optical system, beautiful structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

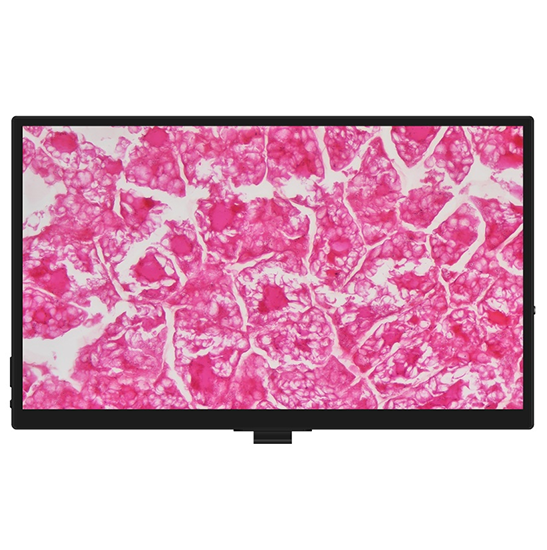

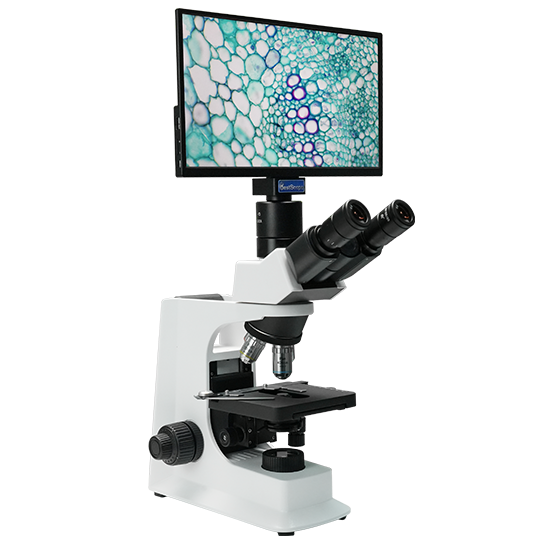

BLM5-236 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.

BLM5-236 is a combination of BS-2036DT and BLC-480B all-in-one camera.

Features

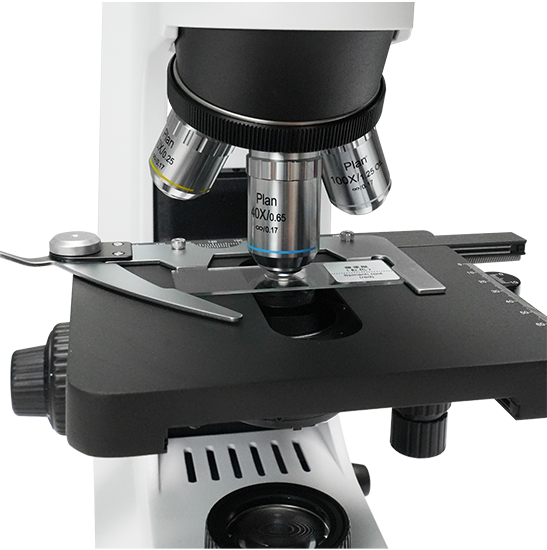

1.Nosepiece

Backward quadruple nosepiece, with infinite achromatic plan objectives 4X, 10X, 40X, 100X (Oil) (S).

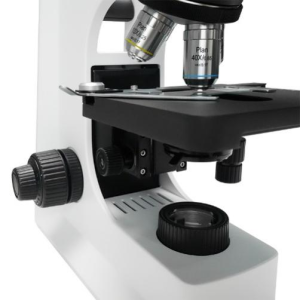

2.Focusing

Coaxial coarse & fine focusing knobs, travel range: 26mm, scale:2um.

3.Illumination

3W LED lamp, brightness adjustable.

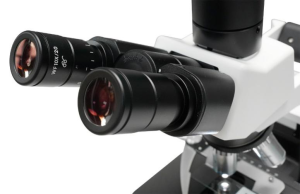

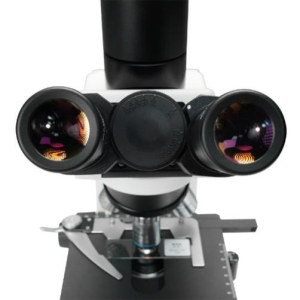

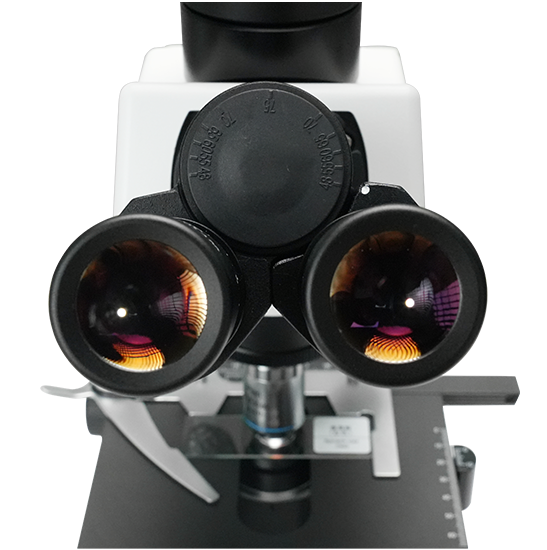

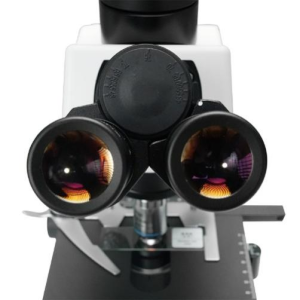

4.Viewing Head

Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80.

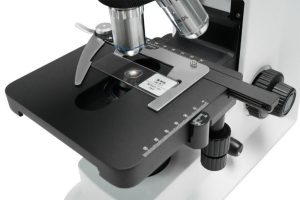

5.Stage

Double layers mechanical stage, size: 145mm*140mm, cross travel 76mm*52mm, scale 0.1mm, two slide holders.

6.Eyepiece

High eyepoint wide field eyepiece WF10X/20mm.

7..Excellent optical system

Excellent optical system, outstanding image quality with high resolution and definition.

8..Ergonomic design

Comfortable operating with ergonomic design. Back handle and observing hole convenient for carry and operation.

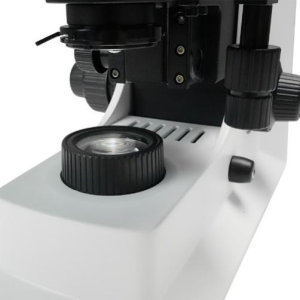

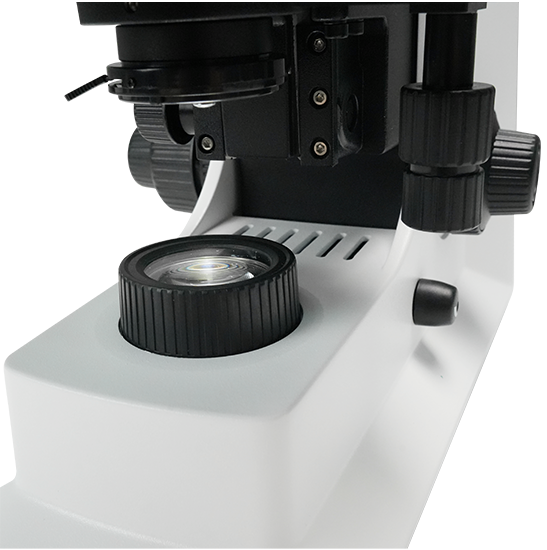

9.Unique aspheric illumination system

Unique aspheric illumination system, provide bright and comfortable lighting.

10.Color for optional

White color is standard, blue color is optional for lively environment and happy mood.

11.Power supply

Built-in LED illumination system which can be powered with power bank, laptop and vehicle power supply ensures being used anywhere and any condition

12.Various accessories for upgrading

Wire winding device convenient for carry and storage (optional).

Phase contrast unit, independent phase contrast unit (optional, apply to infinite optical system).

Simple polarizing unit with polarizer and analyzer (optional).

Dry / Oil Dark Field Condenser (optional).

Fluorescent attachment (optional, with LED or mercury light source)

BS-2036FB(LED) with UV/V/B/G Filter

BS-2036FB(LED) with B/G Filter BS-2036FB

BS-2036F2B(LED)

BS-2036F2T(LED)

13.All-in-one camera

Application

BLM5-236 LCD Digital Biological Microscope is ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
