BestScope BLM4-230 LCD Digital Biological Microscope Introduction

د.م.13,950.00

Item	Specification	BLM4-230

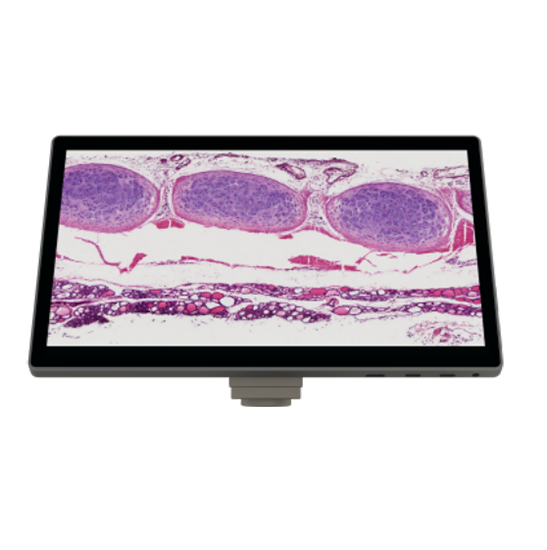

LCD Digital Camera	BLC-240A All-in-One Touch Camera with HDMI output, 1920*1080@60fps, 10.1inch LCD touch screen with Android 12 operation system and measurement function. Dual USB ports for USB disk and mouse.	●

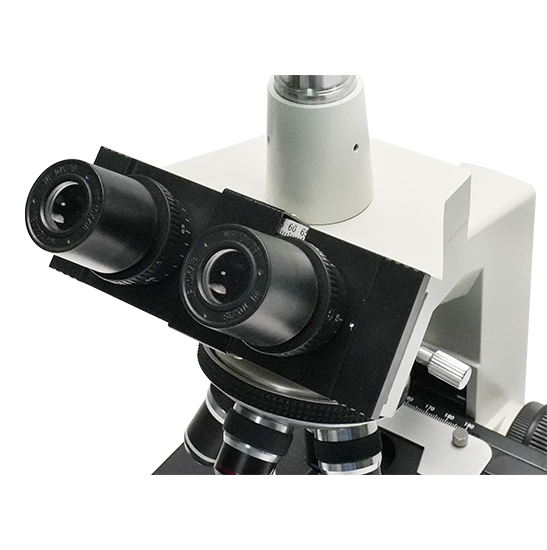

Viewing Head	Sliding trinocular head, inclined at 45° and 360° rotatable, interpupillary distance 55-75mm	●
Viewing Head	Anti-mold	○
Eyepiece	Wide field eyepiece WF10×/ 18mm	●
Eyepiece	Wide field eyepiece WF16×/ 11mm	○

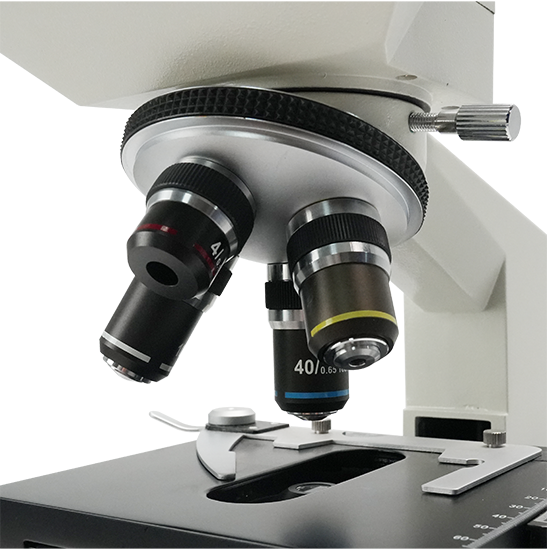

Nosepiece	Quadruple nosepiece	●
Nosepiece	Quintuple nosepiece	○
Objective	Achromatic Objective 4×, 10×, 40×, 100×	●
	Achromatic Objective 20×, 60×	○
	Semi-Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×	○
	Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×	○
Total magnifications	With 10x eyepiece: 40×, 100×, 400×, 1000×	●
Total magnifications	With 16x eyepiece: 64×, 160×, 640×, 1600×	○

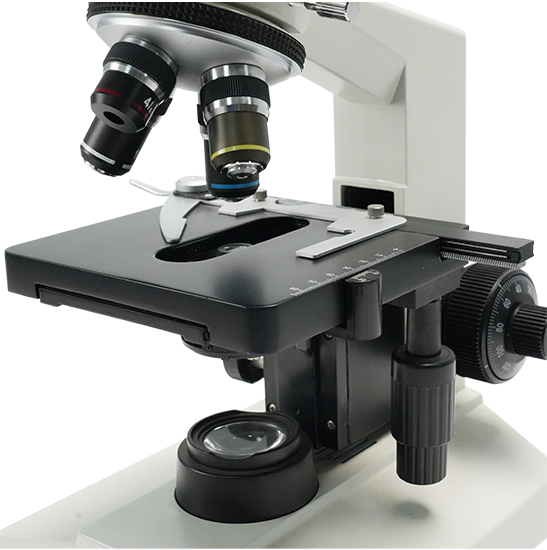

Stage	Double layer mechanical stage 140140mm, moving range 7550mm. Can hold two slides	●
Focus	Coaxial coarse & fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm	●

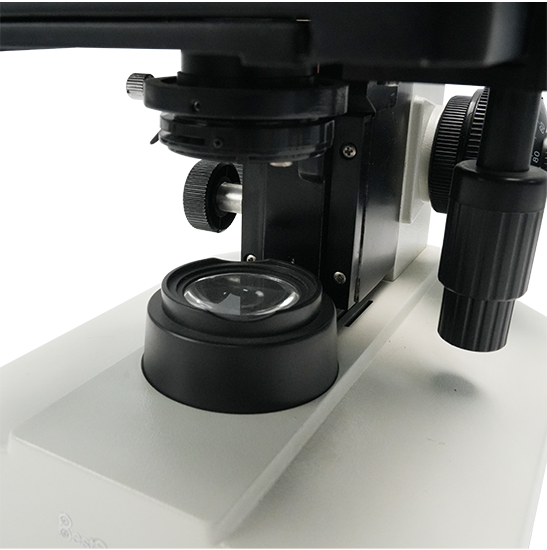

Condenser	Abbe NA 1.25 with iris diaphragm & filter	●
Illumination	1W S-LED illumination, brightness adjustable	●
	6V/20W halogen light, brightness adjustable	○
	Plan-concave mirror	●
Body / Energy	Firm aluminum body and built in power supply 110-240V	●
Supplied with	Dust cover, immersion oil and user manual	●
Polarization Set	Simple polarization set	○
Phase Contrast Kit	Simple phase contrast kit	○
	Sliding phase contrast kit	○
	Turret phase contrast kit	○
Dark Field Attachment	Dark field attachment (Dry) NA0.9	○
Dark Field Attachment	Dark field attachment (Oil) NA1.25-1.36	○
Fluorescent Attachment	YX-2B fluorescent attachment	○
Battery	Rechargeable battery (only for LED illumination)	○
Others	0.5× C-mount adapter	●
	1× C-mount adapter	○
	0.37×, 0.5×, 0.75×, 1× reduction lens	○

Note: ● Standard Outfit, ○ Optional

Item	Description
Screen	10.1 inch IPS TFT-LCD
Screen Resolution	1920*1200
Screen Color	16.7M, 72% NTSC
Luminance	300cd/m²
Contrast Ratio	800:1
Viewing Angle	89/89/89/89
Processor	ARM-A55 64-bit Quad Core 1.5GHz
Running Memory	16 GB
Built-in Storage	256 GB
Network	Support 5G and 2.4G Wifi, independent single antenna
Sensor	SONY IMX307 (C)
Sensor Size	1/2.8”
Resolution	1920*1080 2MP
Pixel	2.9μm*2.9μm
HDMI Interface	HDMI 1.4 1920*1080@60fps (Mini)
Dual USB-C Interface	Connect to USB mouse, USB disk
SD Card Slot	Supporting
Power Button	Short press to turn on, long press to turn off
Photo Button	Supporting
Power Supply	DC 12V/ 2A
Operating System	Android 12
Optional Software	TScopePadView
Auxiliary functions	Exposure and gain adjustment, white balance, color adjustment, automatic sharpening, automatic denoising, light source frequency, flipping, etc.
Measurement Function	Straight line length, broken line length, distance between parallel line, point to line distance, radius circle, three-point circle, concentric circle, center distance, polygon, rectangle, three-point angle, measurement data export, etc.
Image	2M (1920*1080) JPEG
Video Storage	2M (1920*1080) MP4 30fps
Language	Chinese/ Tradional Chinese/ Russian/ English/ German/ French/ Japanese/ Itlian

Item	Description
Screen	10.1 inch IPS TFT-LCD
Screen Resolution	1920*1200
Screen Color	16.7M, 72% NTSC
Luminance	300cd/m²
Contrast Ratio	800:1
Viewing Angle	89/89/89/89
Processor	ARM-A55 64-bit Quad Core 1.5GHz
Running Memory	16 GB
Built-in Storage	256 GB
Network	Support 5G and 2.4G Wifi, independent single antenna
Sensor	SONY IMX307 (C)
Sensor Size	1/2.8”
Resolution	1920*1080 2MP
Pixel	2.9μm*2.9μm
HDMI Interface	HDMI 1.4 1920*1080@60fps (Mini)
Dual USB-C Interface	Connect to USB mouse, USB disk
SD Card Slot	Supporting
Power Button	Short press to turn on, long press to turn off
Photo Button	Supporting
Power Supply	DC 12V/ 2A
Operating System	Android 12
Optional Software	TScopePadView
Auxiliary functions	Exposure and gain adjustment, white balance, color adjustment, automatic sharpening, automatic denoising, light source frequency, flipping, etc.
Measurement Function	Straight line length, broken line length, distance between parallel line, point to line distance, radius circle, three-point circle, concentric circle, center distance, polygon, rectangle, three-point angle, measurement data export, etc.
Image	2M (1920*1080) JPEG
Video Storage	2M (1920*1080) MP4 30fps
Language	Chinese/ Tradional Chinese/ Russian/ English/ German/ French/ Japanese/ Itlian

Category: Microscopes

Description

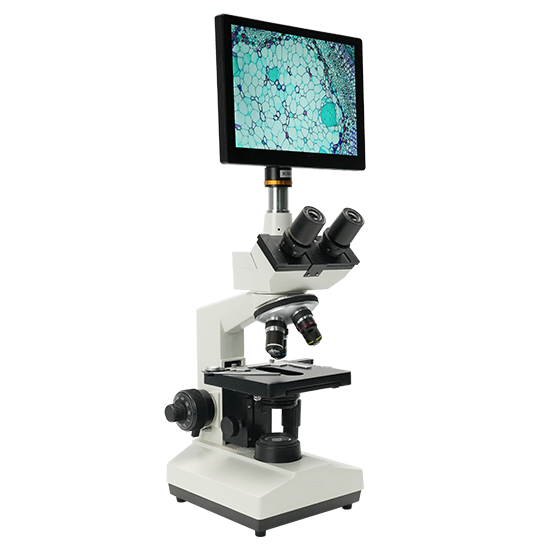

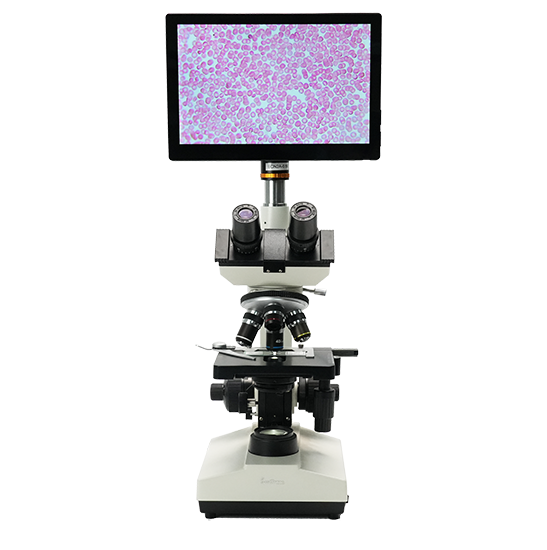

BLM4-230 LCD Digital Biological Microscope

Introduction

BLM4-230 is widely used in educational, academic, agricultural and study field. Rechargeable battery (only for LED illumination) is optional for outdoors operation or places that power supply is not stable.

Details

Model：BLM4-230

Eyepiece:WF10×/18mm

Sensor Size:1/2.8”

Objective:4×, 10×, 40×, 100×

Resolution:1920*1080 2MP

Illumination:1W S-LED

Introduction

With precision machining equipment and advanced alignment technology, BLM4-230 LCD Digital Biological Microscope is classical biological microscopes. BLM4-230 is widely used in educational, academic, agricultural and study field. Rechargeable battery (only for LED illumination) is optional for outdoors operation or places that power supply is not stable.

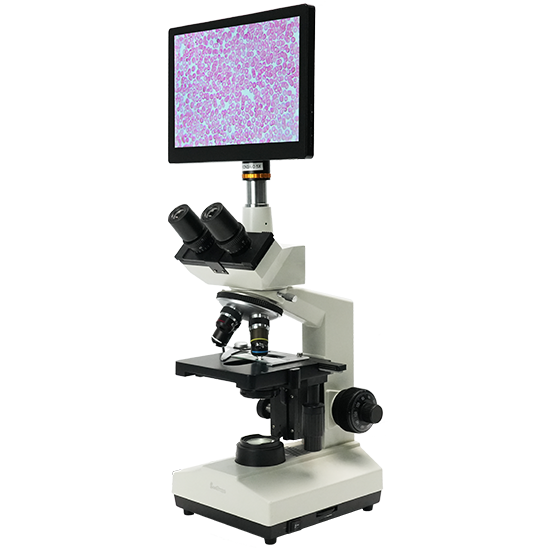

BLM4-230 adopts all-in-one touch camera that integrates a 10.1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.

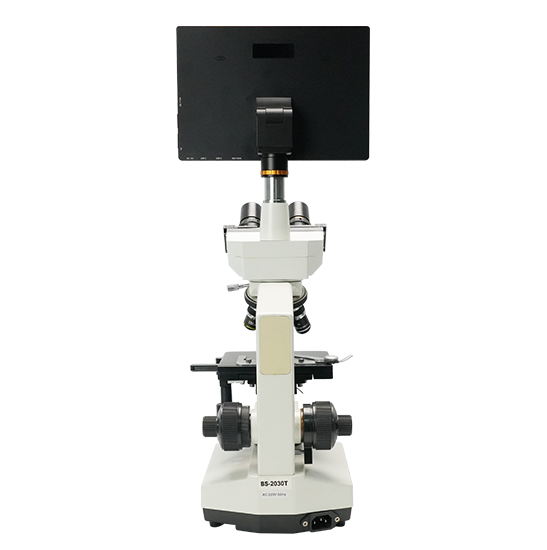

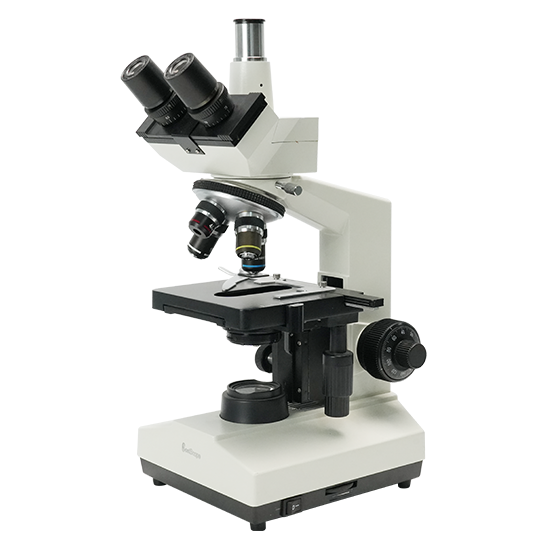

BLM4-230 is a combination of BS-2030T and BLC-240A all-in-one camera.

Features

1.New machining facility and advanced alignment technology.

2.Comfortable operation with updated and ergonomic design.

3.Compact and flexible, ideally suited for desktop, laboratory worktable.

4.Interpupillary distance can be adjusted to fit for observation.

5.BLM4-230 adopts all-in-one touch camerathat integrates a 1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.

Application

BLM4-230 LCD Digital Biological Microscope is an ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
