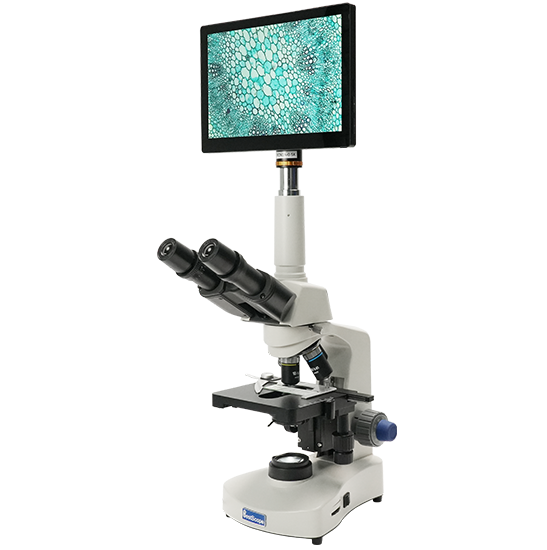

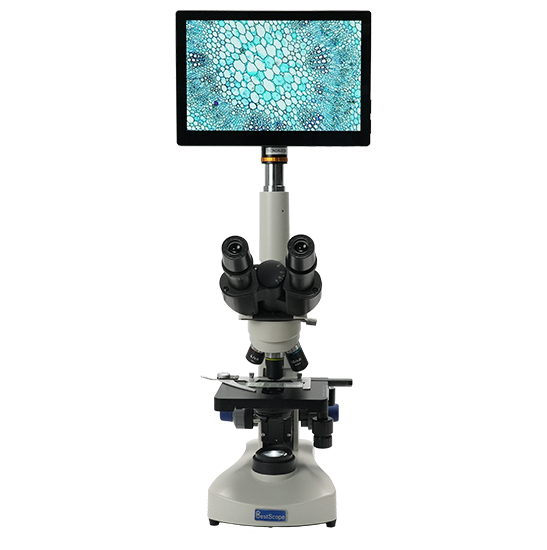

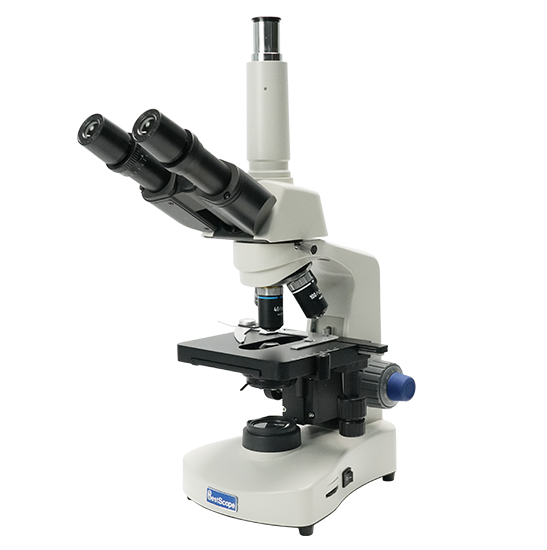

BestScope BLM4-221 LCD Digital Biological Microscope

د.م.16,950.00

Specification

Item	Specification	BLM4-221
Optical System	Infinite Optical System	●

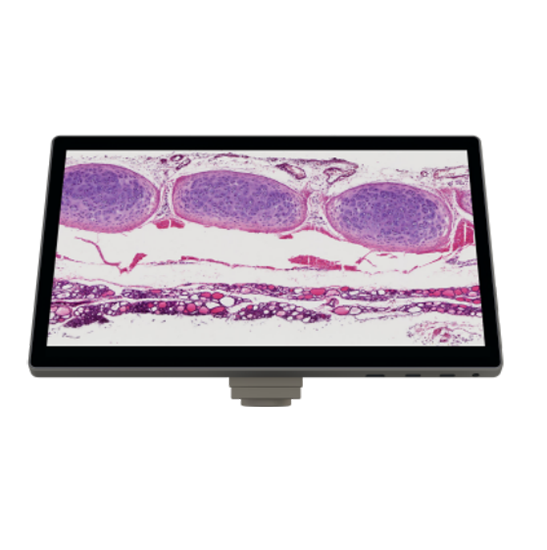

LCD Digital Camera	BLC-240A All-in-One Touch Camera with HDMI output, 1920*1080@60fps, 10.1inch LCD touch screen with Android 12 operation system and measurement function. Dual USB ports for USB disk and mouse.	●

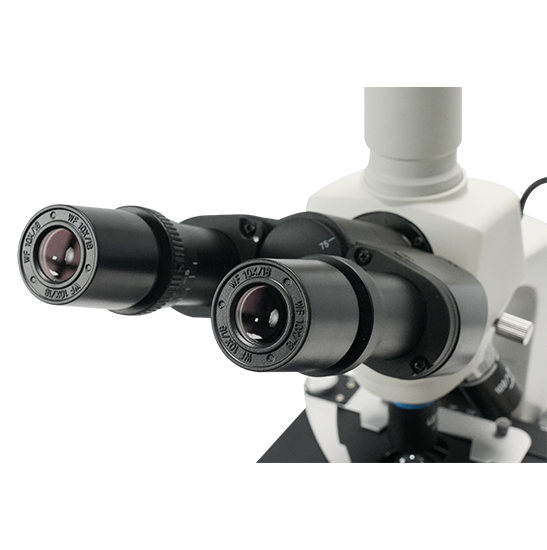

Viewing Head	Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm	●
Eyepiece	WF10×/18mm	●
	P16×/11mm	○
	WF20×/9.5mm	○
	WF25×/6.5mm	○
Objective	Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×, 100×	●
Objective	Infinite Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100×	○
Nosepiece	Backward quadruple nosepiece	●

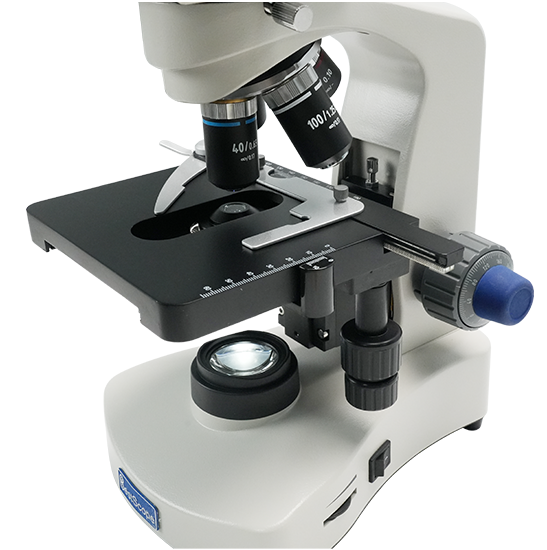

Stage	Double layer mechanical stage 132mm142mm/ 75mm40mm	●

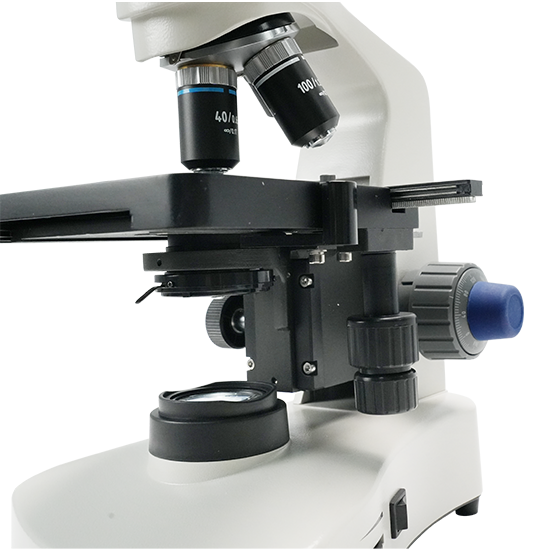

Focusing	Coaxial coarse & fine adjustment, fine division 0.004mm, coarse stroke 37.7mm per rotation, fine stroke 0.4mm per rotation, moving range 24mm	●
Condenser	NA1.25 Abbe condenser with iris diaphragm and filter holder	●
Illumination	LED illumination, brightness adjustable	●
Illumination	Halogen lamp 6V/ 20W, brightness adjustable	○
Immersion oil	5ml Immersion oil	●
Optional Accessories	Phase contrast kit	○
	Dark field attachment (Dry/Oil)	○
	Polarization attachment	○
	Rechargeable battery	○
	0.5× C-mount adapter	●
	1× C-mount adapter	○
	0.37×, 0.5×, 0.75×, 1× reduction lens	○

Note: ● Standard Outfit, ○ Optional

Item	Description
Screen	10.1 inch IPS TFT-LCD
Screen Resolution	1920*1200
Screen Color	16.7M, 72% NTSC
Luminance	300cd/m²
Contrast Ratio	800:1
Viewing Angle	89/89/89/89
Processor	ARM-A55 64-bit Quad Core 1.5GHz
Running Memory	16 GB
Built-in Storage	256 GB
Network	Support 5G and 2.4G Wifi, independent single antenna
Sensor	SONY IMX307 (C)
Sensor Size	1/2.8”
Resolution	1920*1080 2MP
Pixel	2.9μm*2.9μm
HDMI Interface	HDMI 1.4 1920*1080@60fps (Mini)
Dual USB-C Interface	Connect to USB mouse, USB disk
SD Card Slot	Supporting
Power Button	Short press to turn on, long press to turn off
Photo Button	Supporting
Power Supply	DC 12V/ 2A
Operating System	Android 12
Optional Software	TScopePadView
Auxiliary functions	Exposure and gain adjustment, white balance, color adjustment, automatic sharpening, automatic denoising, light source frequency, flipping, etc.
Measurement Function	Straight line length, broken line length, distance between parallel line, point to line distance, radius circle, three-point circle, concentric circle, center distance, polygon, rectangle, three-point angle, measurement data export, etc.
Image	2M (1920*1080) JPEG
Video Storage	2M (1920*1080) MP4 30fps
Language	Chinese/ Tradional Chinese/ Russian/ English/ German/ French/ Japanese/ Itlian

Category: Microscopes

Description

Introduction

BLM4-220 LCD Digital Biological Microscope is economic, practical and easy to operate. It adopts LED illumination, which saves energy, has long working life and also comfortable for observation.

Details

Model：BLM4-221

Eyepiece:WF10×/18mm

Sensor Size:1/2.8”

Objective:4×, 10×, 40×, 100×

Resolution:1920*1080 2MP

Illumination: 6V/ 20W

Introduction

BLM4-221 LCD Digital Biological Microscope is economic, practical and easy to operate. It adopts LED illumination, which saves energy, has long working life and also comfortable for observation. BLM4-221 is widely used in educational, academic, agricultural and study field. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.

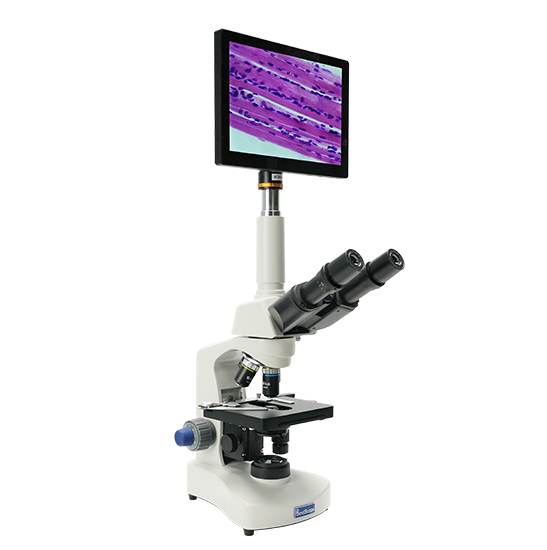

BLM4-221 adopts all-in-one touch camera that integrates a 10.1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.

BLM4-221 is a combination of BS-2021T and BLC-240A all-in-one camera.

Features

1.Infinite Optical System.

2.Comfortable operation with updated and ergonomic design.

3.LED light illumination, save energy and long working life.

4.Compact and flexible, ideally suited for desktop, laboratory worktable.

5.BLM4-221 adopts all-in-one touch camerathat integrates a 1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.

Application

BLM4-221 LCD Digital Biological Microscope is ideally suited for school biological education, veterinary and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.
